Inline

High functionality, attractive design

Standard size or tailor-made - INLINE provides a stylish hiding place for your projection screen. A top-quality, stationary projection screen must meet a number of criteria. The projected images must be large, brilliant and effective. Out of use, the screen should be invisible. That‘s why the INLINE system makes the lower screen edge disappear into the casing until it is level with it.

Depending on the required projection screen dimensions we do manufacture roll up cases in different sizes:

Casing size 9 x8,5 cm
Casing size 12,5 x12,5 cm
Casing size 16 x16 cm


Drives

Electric, crank drive or soft rewind mechanic.

Noiseless motor

Noiseless motor-driven projection screen using a special motor with rubber mounting.

SMOOTH CRANK DRIVE

Smoothly running hand crank drive with built-in stop unit.



SOFT-REWIND MECHANISM

Roll-up mechanism with soft and controlled rewind.

Roll-up tubing

High precision roll-up tubing grants brilliant surface flatness.


Mounting Options

Wall or ceiling, visible or hidden?

QuickMount

Wall- or ceiling mount



INLINE 90

(casing 9 x 8,5cm)

INLINE 125

(casing 12,5 x 12cm)



The QuickMount is a universal mounting bracket for all wall- or ceiling mounting options - also for hidden and difficult accessible areas.

The ability to move the brackets on any position on casing profile makes it perfect for any relevant local circumstances. The mounting can be performed safely and easily by one person.



Ceiling integration

Ceiling integration

Ceiling case

Ceiling mount

INLINE 90

(Casing 9 x 8,5cm)

The recessed box can be pre-installed during building works. The installation depth is only 95 mm! The recessed box can be delivered separately in advance.

CEILING INTEGRATION

Ceiling mount

INLINE 90

(Casing 9 x 8,5cm)

INLINE 125

(Casing 12,5 x 12cm)

INLINE 160

(Casing 16 x 16cm)

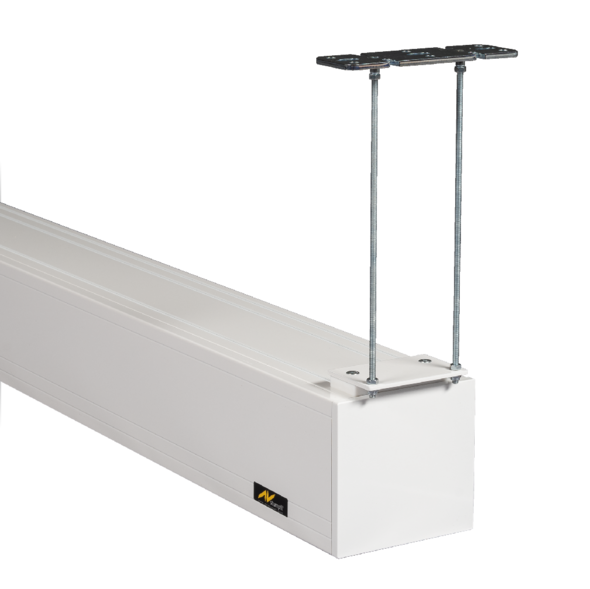

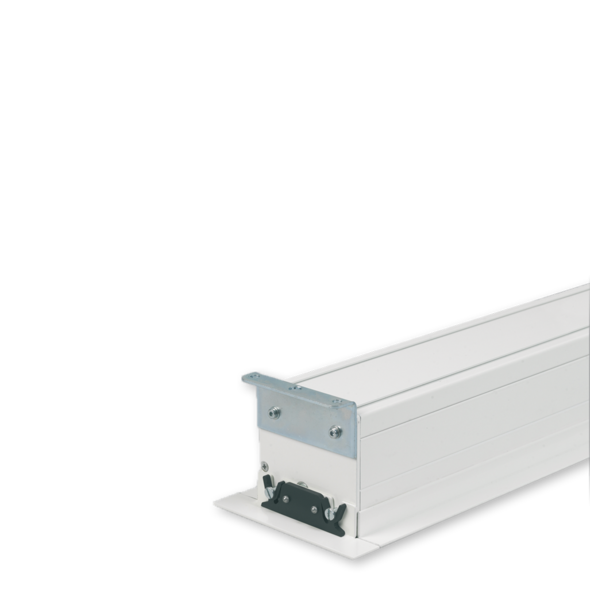

Casing profile incl. ceiling integration frame and clips brackets for suspended ceilings. This version of casing is only for use with suspended ceilings.

MOUNTING PLATE

Ceiling mount

INLINE 90

(Casing 9 x 8,5cm)
mounting plate is an easy on ceiling mounting option.

INLINE 125

(Casing 12,5 x 12cm)
mounting plate is an easy on ceiling mounting option.

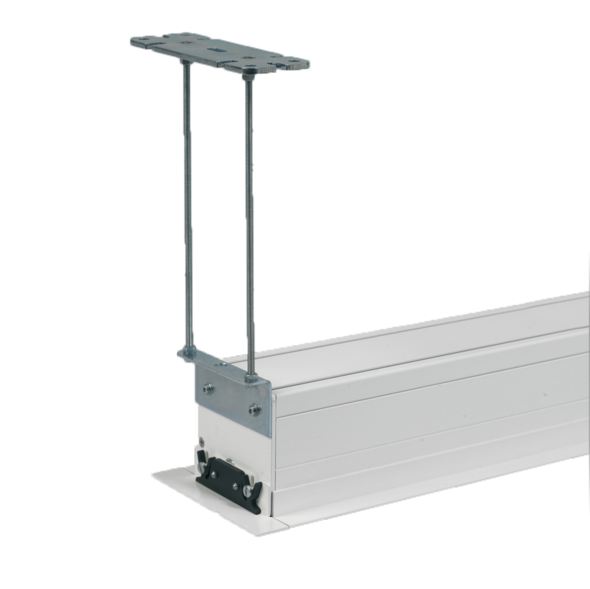

Mounting Plate with Set for Suspended Ceiling

For special mounting requirements the mounting plate can be combined with the mounting set for suspended ceiling (BIZ-MSAD/DMP/090/125). The mounting set enables a continous adjustment of the mounting height by thread rods.

MOUNTING BRACKET

Wall- or ceiling mount

INLINE 90

(Casing 9 x 8,5cm)

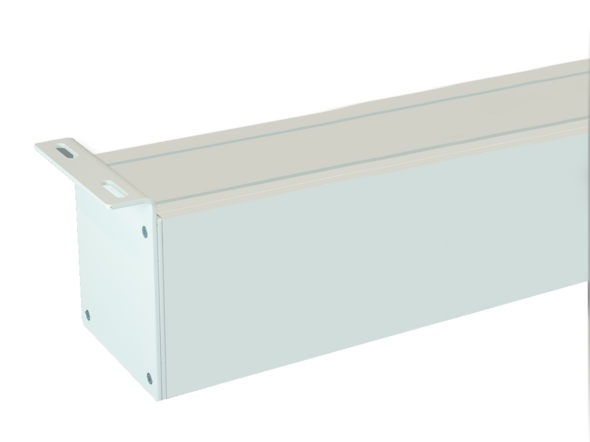

Standard bracket for wall- or ceiling mount.

INLINE 125

(Casing 12,5 x 12cm)
Standard bracket for wall- or ceiling mount.

INLINE 160

(Casing 16 x 16cm)
Standard bracket for wall- or ceiling mount.

Bracket options

Bracket options

CEILING BRACKET

INLINE 90 (5 - 90cm)
INLINE 125 (5 - 90cm)

WALL BRACKETS

INLINE 90 (5 - 60cm)
INLINE 125 (5 - 60cm)

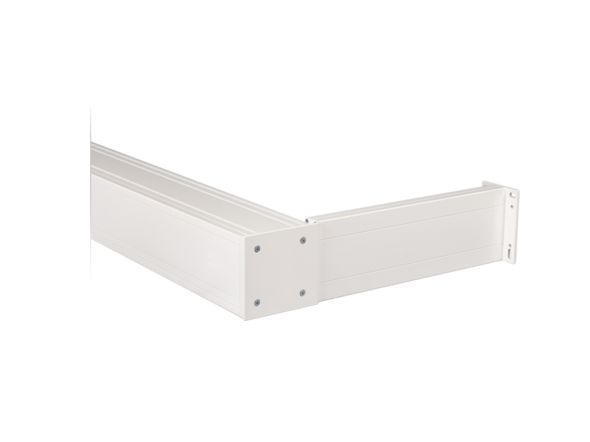

WALL/CEILING BRACKET

INLINE 90 (5 - 60cm)
INLINE 125 (5 - 60cm)
INLINE 160 (5 - 40cm)


Fabric

Fabric

Plana Eco JMB


base material: woven polyester fabric
surface density: ~ 395 g/m²
Thickness: ~ 0,45mm
gain: 0,96
light proof: 100%
fire resistance: DIN 4102 part1-B1 and NFPA #701


Strato Eco JMB/JMW


base material: woven polyester fabric
surface density: ~ 410 g/m² | ~ 430 g/m²
Thickness: ~ 0,45mm
gain: 0,91 | 0,79
light proof: 100%
fire resistance: DIN 4102 part1-B1 and NFPA #701


Strato TKB


base material: fibreglass non-woven
surface density: ~ 850g/m²
Thickness: ~ 0,62mm
gain: 0,99
light proof: 100%
fire resistance: DIN 4102 part1-B2 and NFPA #701


Strato Fabric CF


base material: fibreglass fabric
surface density: ~ 800g/m²
Thickness: ~ 0,75mm
gain: 0,94
light proof: 97%
fire resistance: DIN 4102 part1-B1 and NFPA #701


Strato XTK


base material: fibreglass non-woven
surface density: ~ 1510g/m²
Thickness: ~ 1,05 mm
gain: 0,98
light proof: 100%
fire resistance: DIN 4102 part1-B2 and NFPA #701


Modifications

Special RAL varnish

All casings available with
special RAL varnish

Fabric

unwinds to frontside

Video masking

Video masking according
customers request

Motor right

Radio controlled
motor drive

Radio controlled motor drive,
no receiver necessary

Motor cable

5m, 10m

Roll up control

Wall switch

Wall switch for flush mounting

Radio control set

Radio control set with
handheld radio transmitter

Trigger 12V, 230V

Motor control unit

for media control

Downloads

INLINE 90

INLINE 125 motor

INLINE 125 crank

INLINE 160

Available sizes

Inline

Overall size cm

Diagonal (inch)

Casing dimension

kg net

kg gross

Motor drive Art.-Nr.

crank drive Art.-Nr.



Format 1:1



220x220cm

122“

SK 9x8.5cm

17

19

BIM-SQ220

BIK-SQ220



240x240cm

134“

SK 9x8.5cm

19

21

BIM-SQ240

BIK-SQ240



250x250cm

139“

SK 12.5x12cm

27

35

BIM-SQ250

BIK-SQ250



300x300cm

167“

SK 12.5x12cm

32

40

BIM-SQ300

BIK-SQ300



350x350cm

195“

SK 12.5x12cm

45

53

BIM-SQ350



400x400cm

223“

SK 16x16cm

75

95

BIM-SQ400




Format 4:3



220x165cm

108“

SK 9x8.5cm

16

18

BIM-SV220



240x180cm

118“

SK 9x8.5cm

17

19

BIM-SV240



280x210cm

138“

SK 12.5x12cm

28

36

BIM-SV280



300x225cm

148“

SK 12.5x12cm

30

38

BIM-SV300



350x260cm

172“

SK 12.5x12cm

41

49

BIM-SV350



400x300cm

197“

SK 16x16cm

70

90

BIM-SV400




Format 16:9



280x160cm

127“

SK 12.5x12cm

27

29

BIM-SC280



300x170cm

136“

SK 12.5x12cm

29

37

BIM-SC300



350x200cm

159“

SK 12.5x12cm

34

42

BIM-SC350



400x225cm

181“

SK 12,5x12cm

45

65

BIM-SC400




Format 16:10



240x150cm

111''

SK 9x8.5cm

17

19

BIM-SW240



280x175cm

130''

SK 12.5x12cm

27

35

BIM-SW280



300x188cm

139''

SK 12.5x12cm

29

37

BIM-SW300



350x219cm

163''

SK 12.5x12cm

34

42

BIM-SW350



400x250cm

186''

SK 12,5x12cm

47

67

BIM-SW400




Format 3:2



220x147cm

104“

SK 9x8.5cm

16

18

BIM-SD220



240x160cm

114“

SK 9x8.5cm

17

19

BIM-SD240



300x200cm

142“

SK 12.5x12cm

30

38

BIM-SD300



360x240cm

170“

SK 12.5x12cm

36

44

BIM-SD360



400x270cm

190“

SK 16x16cm

68

88

BIM-SD400



500x330cm

236“

SK 16x16cm

87

107

BIM-SD500




Free scale



250x200cm

126“

SK 9x8.5cm

18

20

BIM-SF250



300x250cm

154“

SK 12.5x12cm

31

39

BIM-SF300



400x200cm

176“

SK 12.5x12cm

38

55

BIM-SZ400



500x400cm

252“

SK 16x16cm

92

112

BIM-SF500




Special sizes on demand.

Sizes with video masking according price list and special sizes on demand.
