INLINE TENSIONED
Premium quality for perfect flatness.
Whether you are looking to create the perfect corporate installation or to upgrade your state of the art home cinema setup,
AV Stumpfl‘s INLINE tensioned screens combine a truly flat projection surface with ultra-durable components made in Austria.
INLINE tensioned screens are short throw compatible and are available with a great number of different screen surface
materials. Easy to install and built to last.

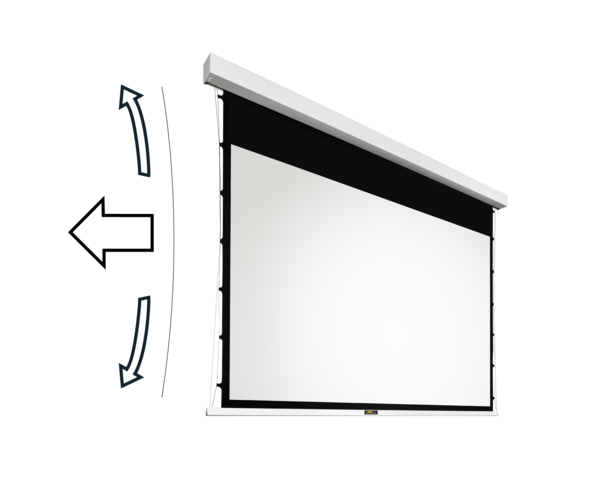

TAB TENSIONED TECHNOLOGY
How it works: Two adjustable lateral rubber ropes are guided through tabs that are arranged along an imaginary hyperbolic curve. Thus guarantees a continuous lateral pull that stretches the entire projection surface to be perfectly flat.
Noiseless motor
Noiseless motor drive for maximum comfort with rubber-coated bearing for noise decoupling.

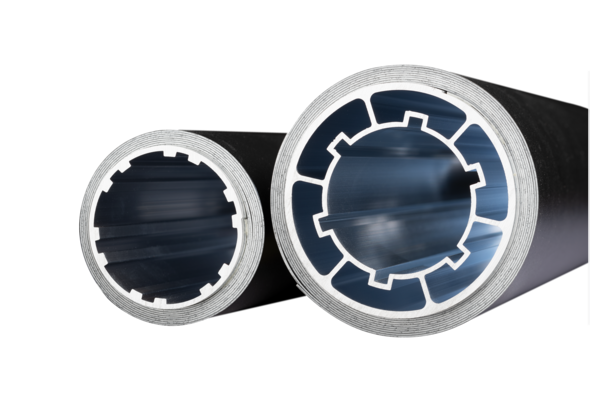

Roll-up tubing
High precision roll-up tubing grants brilliant surface flatness.
Mounting Options
Wall or ceiling, visible or hidden?

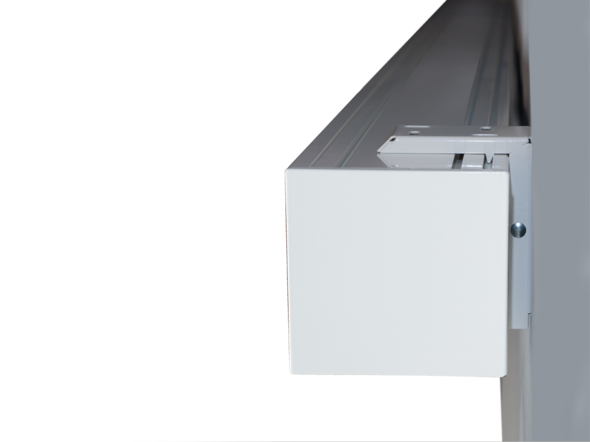

QuickMount
Wall- or ceiling mount
INLINE 125 Tensioned
(Casing 12,5 x 12cm)
The QuickMount is a universal mounting bracket for all wall- or ceiling mounting options - also for hidden and difficult accessible areas.
The ability to move the brackets on any position on casing profile makes it perfect for any relevant local circumstances. The mounting can be performed safely and easily by one person.
Ceiling integration
Ceiling integration
CEILING INTEGRATION
Ceiling mount
INLINE 125 Tensioned
(Casing 12,5 x 12cm)
INLINE 160 Tensioned
(Casing 16 x 16cm)
Casing profile incl. ceiling integration frame and clips brackets for suspended ceilings. This version of casing is only for use with suspended ceilings.
Mounting Plate
Ceiling mount
INLINE 125 Tensioned
(Casing 12,5 x 12cm)
mounting plate is an easy on ceiling mounting option.
Mounting Plate with Set for Suspended Ceiling
For special mounting requirements the mounting plate can be combined with the mounting set for suspended ceiling (BIZ-MSAD/DMP/090/125). The mounting set enables a continous adjustment of the mounting height by thread rods.
MOUNTING BRACKET
Wall- or ceiling mount
INLINE 125 Tensioned
(Casing 12,5 x 12cm)
Mounting option for wall- or ceiling mount
INLINE 160 Tensioned
(Casing 16 x 16cm)
Standard bracket for wall- or ceiling mount.
Bracket options
CEILING BRACKET
INLINE 125 Tensioned, 5 - 90cm
WALL BRACKETS
INLINE 125 Tensioned, 5 - 90cm
WALL/CEILING BRACKET
INLINE 125 Tensioned, 5 - 60cm
INLINE 160 Tensioned, 5 - 40cm
Projection surface materials
Projection surface materials
Flex White T
base material: PVC vinyl
surface density: ~610 g/m2
Thickness: ~ 0,42 mm
gain: 1,17
light proof: 100%
fire resistance: NF P 92-507 - M1
Flex Micro T
base material: PVC vinyl
surface density: ~535 g/m2
Thickness: ~ 0,42 mm
gain: 0,82
light proof: no (92%)
fire resistance: DIN 4102 part1-B1
Flex Contrast Pro
base material: PVC vinyl
surface density: ~405 g/m2
Thickness: ~ 0,31 mm
gain: 0,49
light proof: 100%
fire resistance: DIN EN 13501-1:B-s3,d0 and NFPA #701
Flex Rear T
base material: PVC vinyl
surface density: ~405g/m2
Thickness: ~ 0,31 mm
gain: 1,32
light proof: no
fire resistance: -
BLACKPEAK
base material: PVC vinyl
surface density: ~395g/m2
Thickness: ~ 0,30 mm
gain: 0,11
light proof: 100%
fire resistance: DIN EN 13501-1:B-s3,d0 and NFPA #701
Modifications
Special RAL varnish
All casings available with
special RAL varnish
Fabric
unwinds to frontside
Video masking
Video masking according
customers request
Motor right
Radio controlled
motor drive
Radio controlled motor drive,
no receiver necessary
Motor cable
5m, 10m
Roll up control
Wall switch
Wall switch for flush mounting
Radio control set
Radio control set with
handheld radio transmitter
Trigger 12V, 230V
Motor control unit
for media control
Available sizes
INLINE Tensioned
overall size cm | picture size cm | diagonal (inch) | casing dimensions | kg net | kg gross | |
Format 16:9 | ||||||
190x136 | 180x101 | 81“ | SK 12.5x12cm | 18 | 26 | |
210x148 | 200x113 | 90“ | SK 12.5x12cm | 19 | 27 | |
230x159 | 220x124 | 100“ | SK 12.5x12cm | 20 | 28 | |
250x170 | 240x135 | 108“ | SK 12.5x12cm | 22 | 30 | |
270x181 | 260x146 | 117'' | SK 12.5x12cm | 25 | 33 | |
290x193 | 280x158 | 127“ | SK 12.5x12cm | 27 | 35 | |
310x204 | 300x169 | 136“ | SK 16x16cm | 37 | 57 | |
360x232 | 350x197 | 158“ | SK 16x16cm | 42 | 62 | |
410x260 | 400x225 | 181'' | SK 16x16cm | 47 | 67 | |
450x283 | 440x248 | 199'' | SK 16x16cm | 52 | 72 | |
Format 16:10 | ||||||
190x148 | 180x113 | 84“ | SK 12.5x12cm | 18 | 26 | |
210x160 | 200x125 | 93“ | SK 12.5x12cm | 19 | 27 | |
230x173 | 220x138 | 102“ | SK 12.5x12cm | 21 | 29 | |
250x185 | 240x150 | 111“ | SK 12.5x12cm | 23 | 31 | |
270x197 | 260x162 | 121'' | SK 12.5x12cm | 26 | 33 | |
290x210 | 280x175 | 130“ | SK 12.5x12cm | 28 | 36 | |
310x223 | 300x188 | 139“ | SK 16x16cm | 38 | 58 | |
360x254 | 350x219 | 162'' | SK 16x16cm | 43 | 63 | |
410x285 | 400x250 | 186“ | SK 16x16cm | 48 | 68 | |
450x310 | 440x275 | 204“ | SK 16x16cm | 52 | 72 |
Further sizes on request.
Surface area with a 5 cm black border and 30 cm black drop for increased subjective contrast.
