Desertscreen

  The projection screen for EVERY application

Special requirements demand special solutions. AV Stumpfl developed a mobile projection screen conjoined with a projector mount, which
is suitable for use at untypical places. With the stable Monoblox64 profile frame and according projector arms for the installation of short
throw projectors directly to the screen, this product is ready for any job. Maximum stability combined with high product durability meet again our system philosophy.

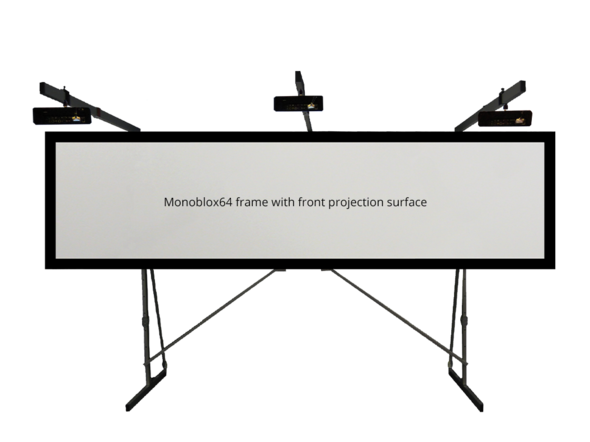

Components

The Desertscreen consists of a foldable Monoblox64 frame with automatically engaging snap joints. The special type AT32/64 legs give the screen a perfect hold. The additional anti-sway braces to the frame bottom and center supports secure, despite additional weight load, maximum frame stability. For an easy and flexible mounting of short-throw projectors a specific overhead - projector arm has been designed which can be attached simply and quickly to the back of the frame. The special projector mounting brackets can be positioned stepless along the projector arms according the required distance. The flexible and foldable front projection surface is attached to the frame via snap
fasteners quick and easy.

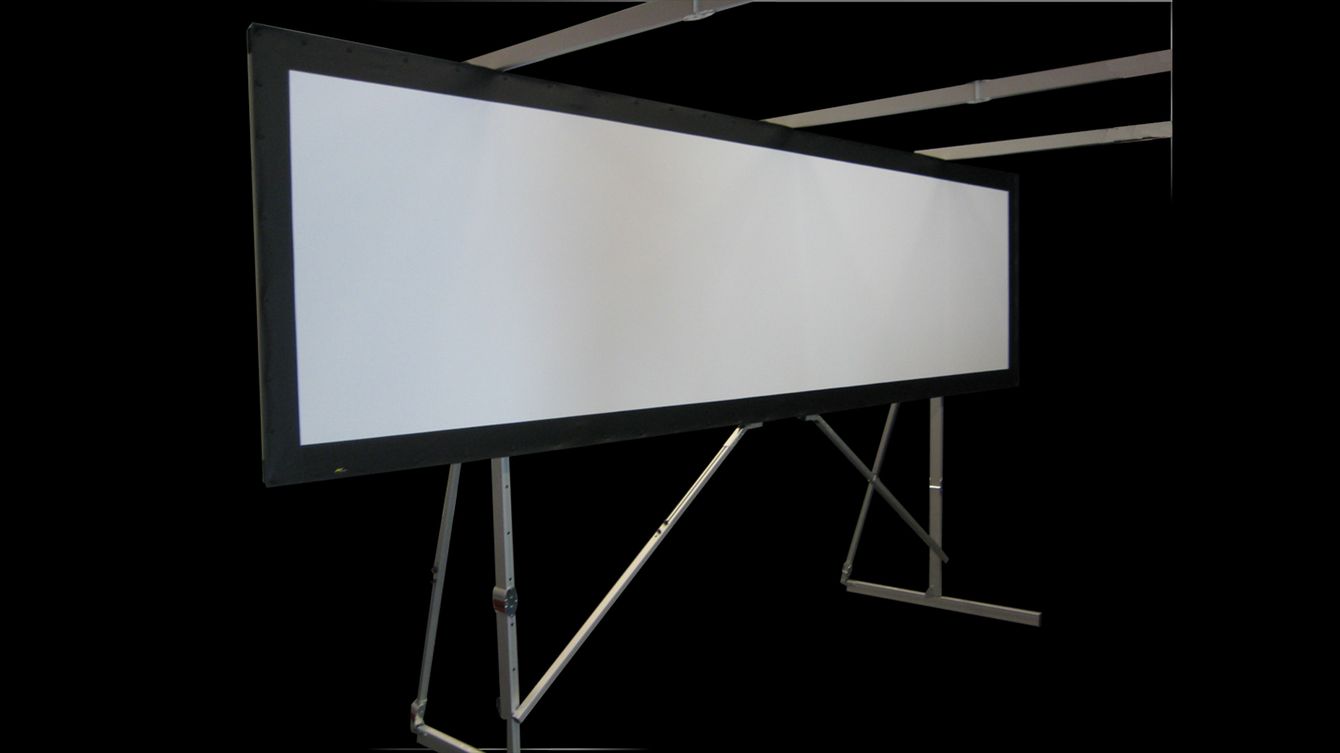

Desertscreen

Desertscreen in combination with a Curve
(three projector arms)
screen size: Width 6m, Height 1,8m, Radius 6,8m

Desertscreen

Field operation Dutch Airmobile Brigade


Set up

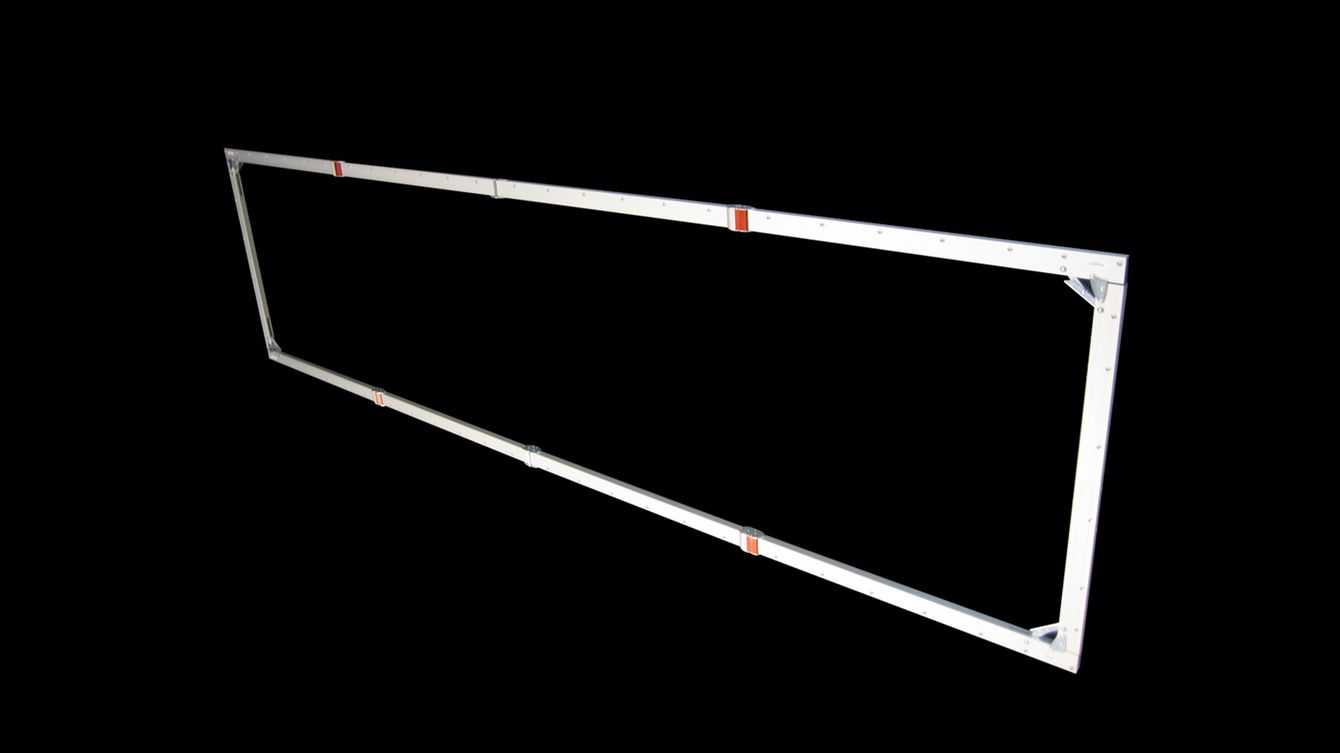

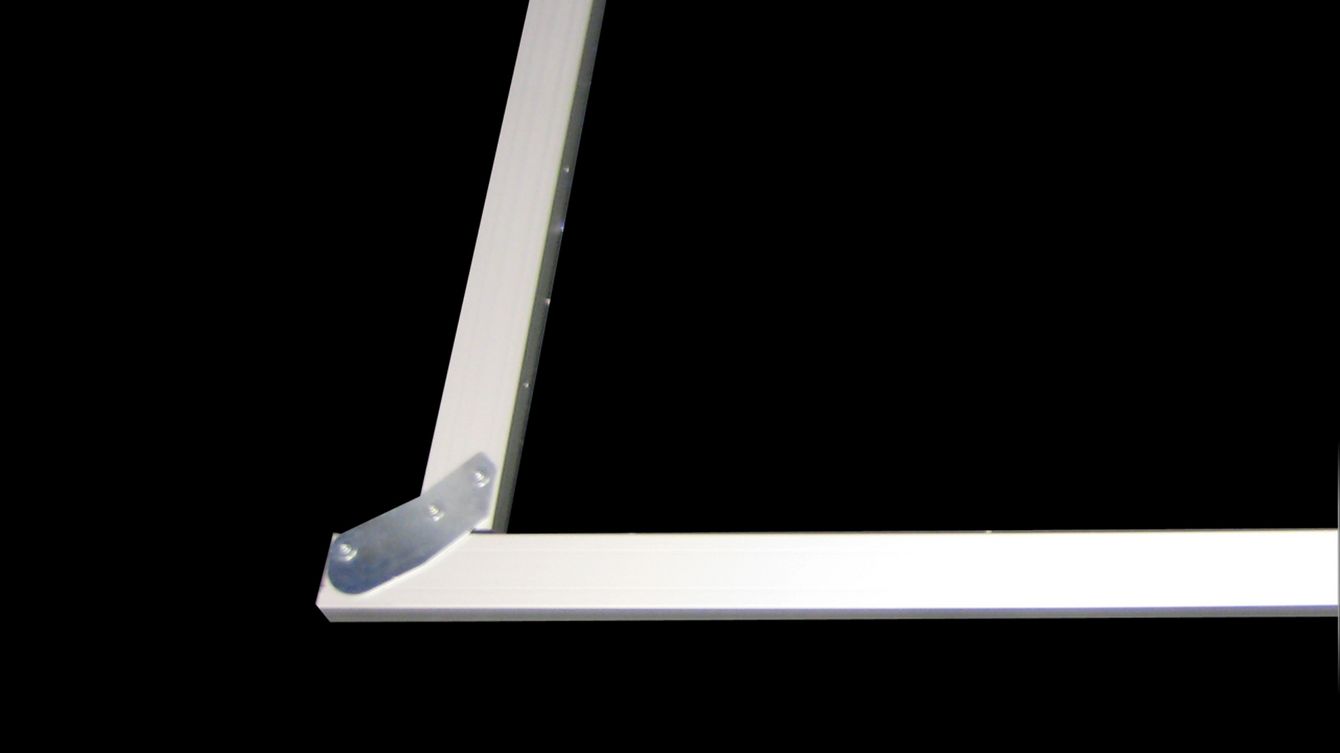

The Desertscreen consists of a foldable Monoblox64 frame with automatically engaging snap joints.

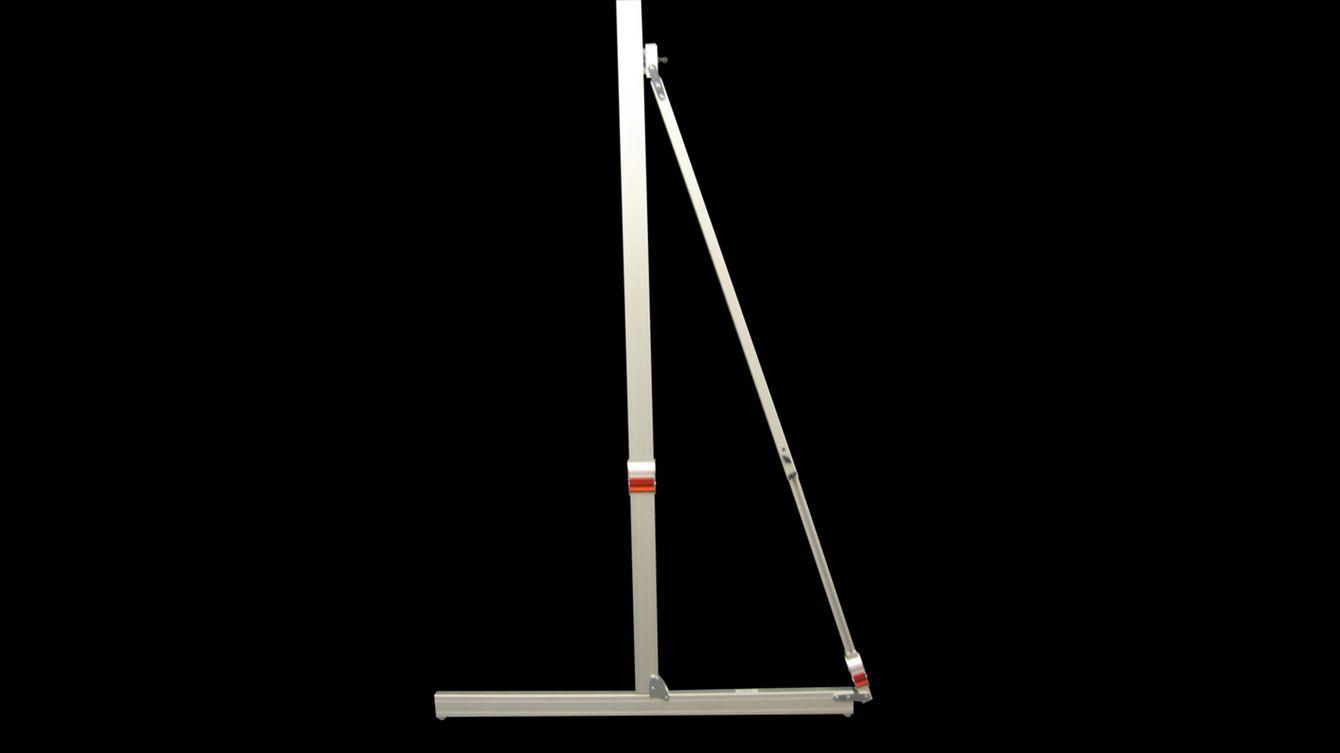

The special type AT64 legs are according the predefined height attached on frame backside via wings screws.

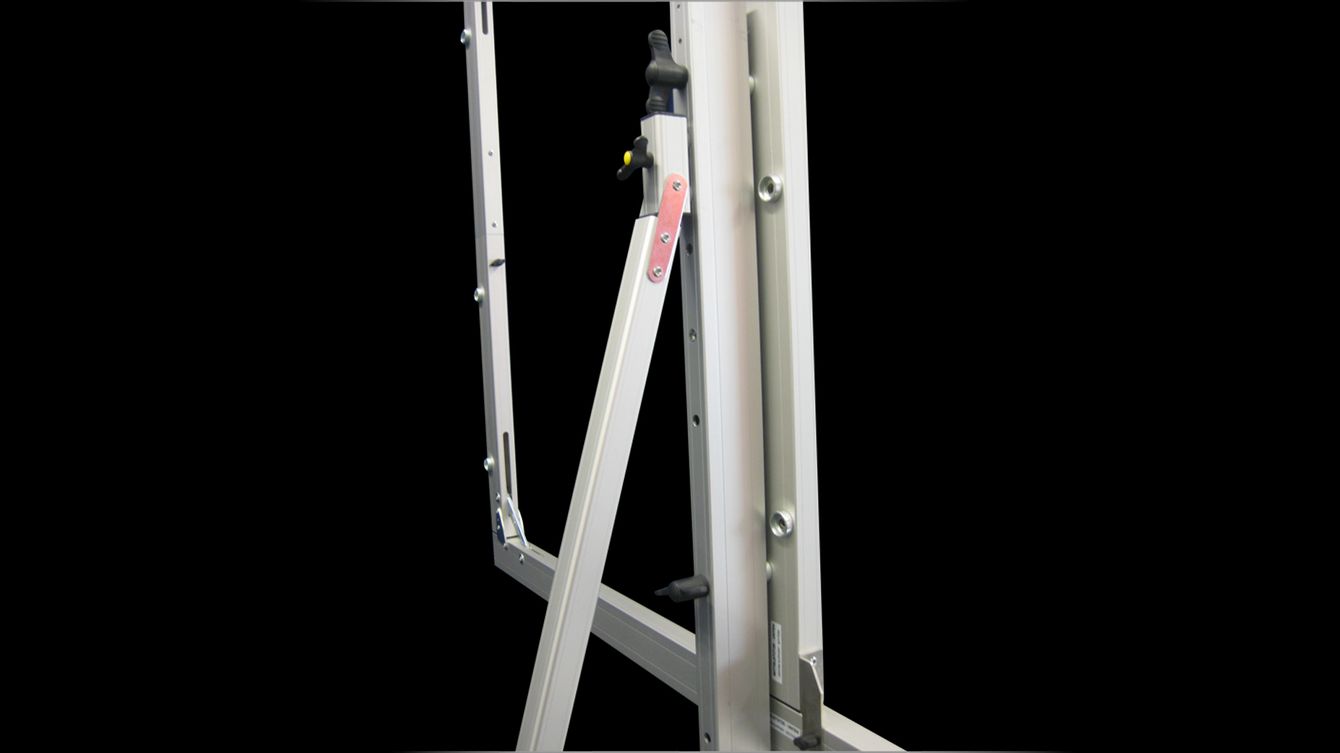

 Detailed view, attachment Legs.

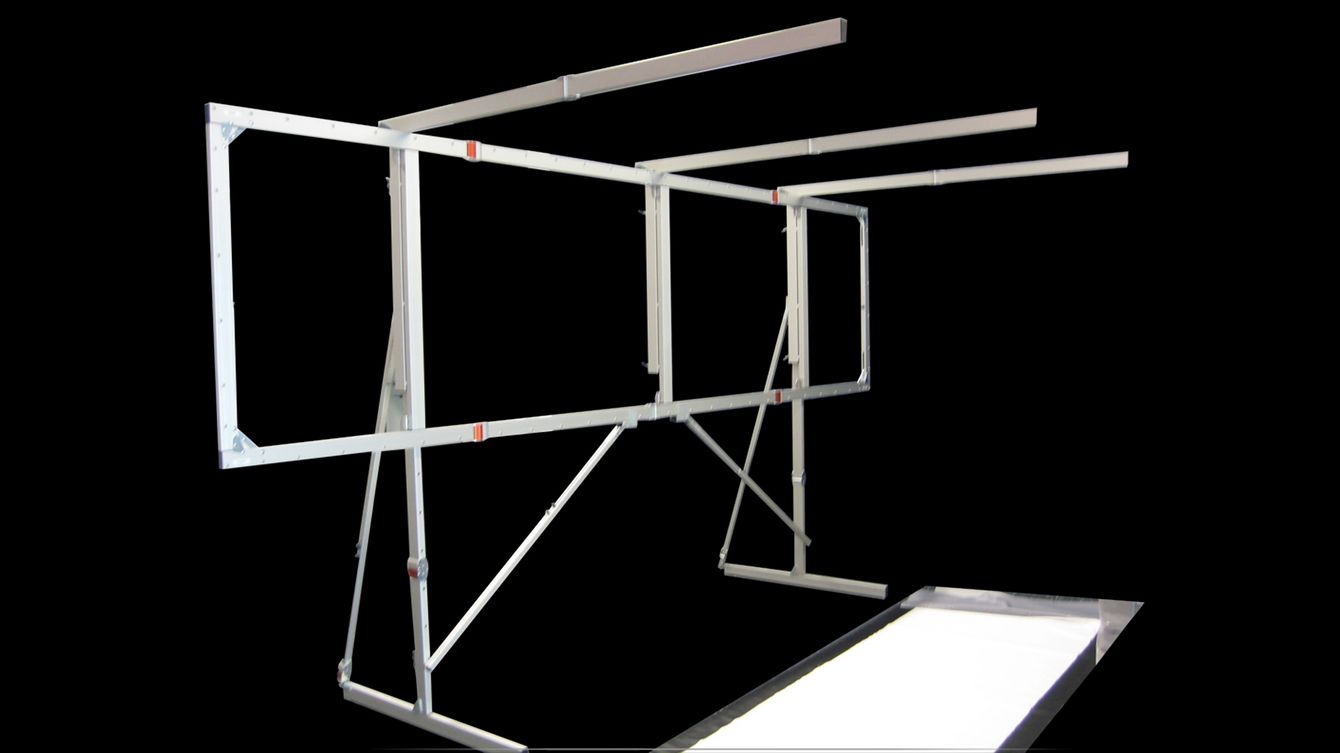

The specific overhead – projector arm can be attached simply and quickly to the back of the frame.




Detailed view, overhead – projector arm for easy and flexible mounting of short-throw projectors.

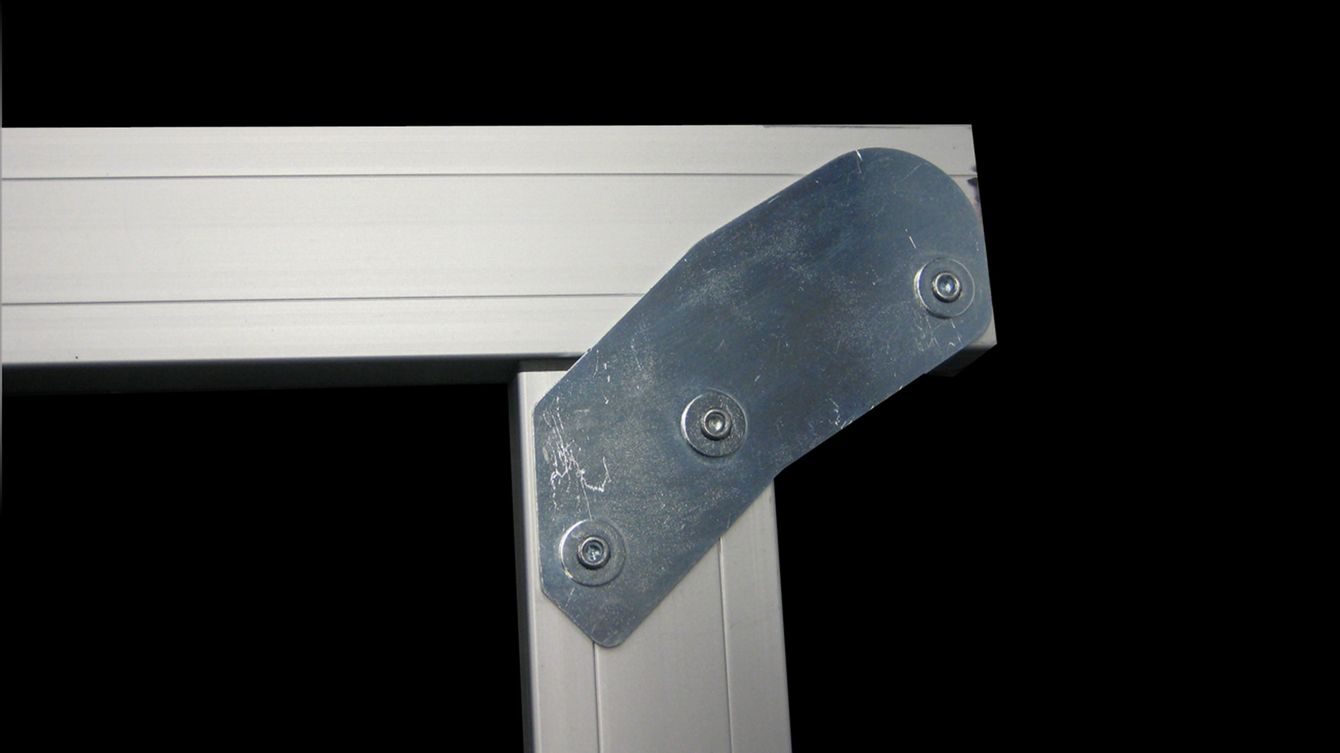

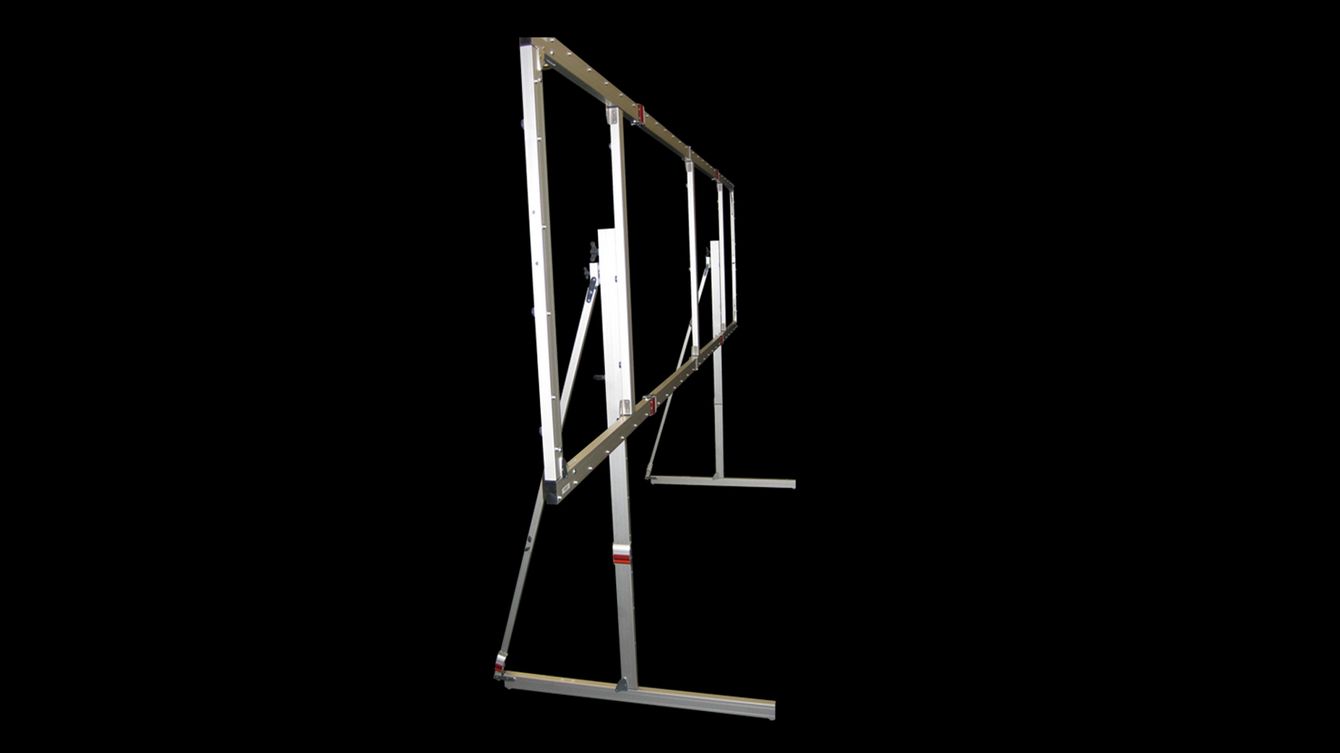

The additional anti-sway braces to the frame bottom secure, despite additional weight load, maximum frame stability.




The additional anti-sway braces to the frame bottom secure, despite additional weight load, maximum frame stability.


 The flexible and foldable front projection surface is attached tot he frame via snap fasteners quick and easy.

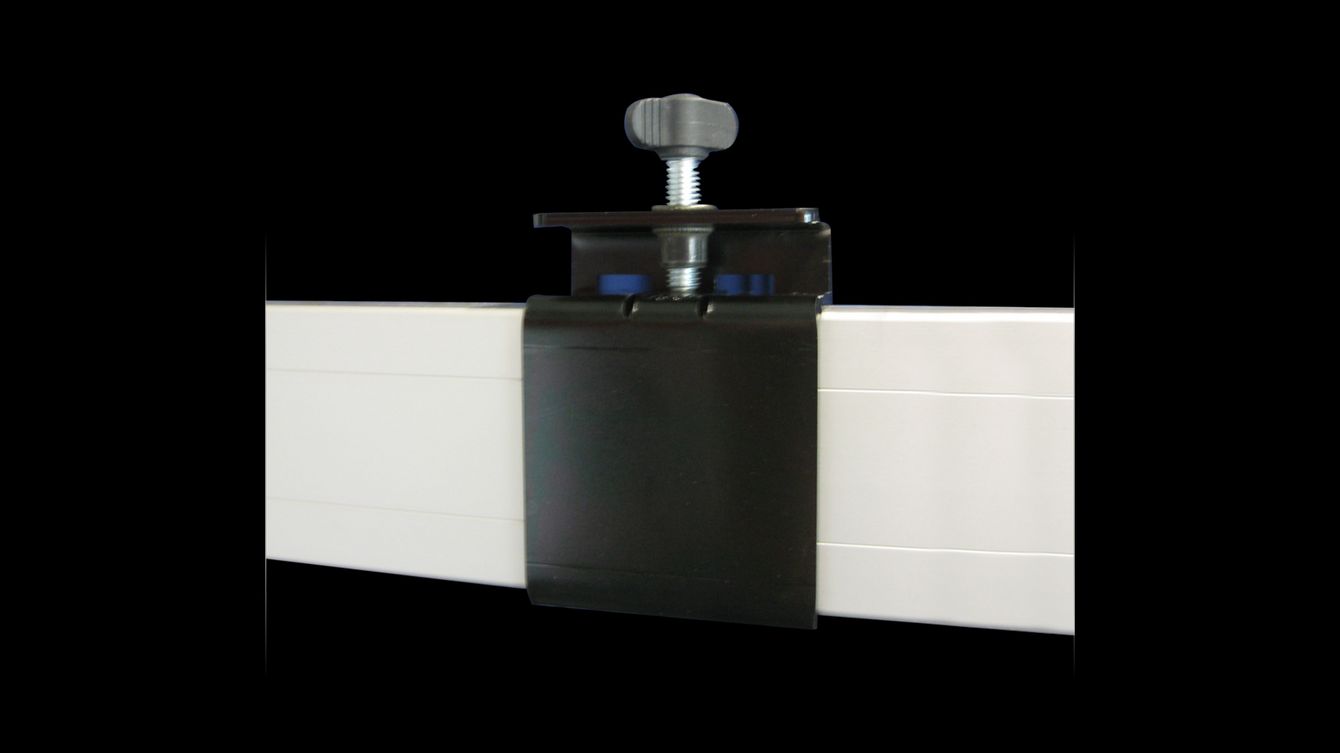

The special projector mounting brackets can be positioned stepless along the projector arms according the required distance.


Downloads

Specifications

  • Max. projector weight: 2,5 kg
  • Max. length of support arm: 190 cm
  • Available with 1, 2 or 3 projector arms

Sizes

  • 220x170 cm frame size incl. 1 projector arm
  • 345x203 cm frame size incl. 1 projector arm
  • 160x120 cm frame size incl. 1 projector arm
  • 447x120 cm frame size incl. 3 projector arms

Special sizes on demand!
