Magnum

Customized greatness

  The optimal solution for large event locations: MAGNUM – the large-scale projection screen with electric drive. MAGNUM consists of an aluminum/steel construction with bearings that have been especially developed for this purpose including safety catch. It is manufactured in accordance with DIN19045. The glass-fiber reinforced, light-proof screen material has heat-sealed seams that are invisible during projection. MAGNUM by AV Stumpfl has the greatness and size that undoubtedly pays off.

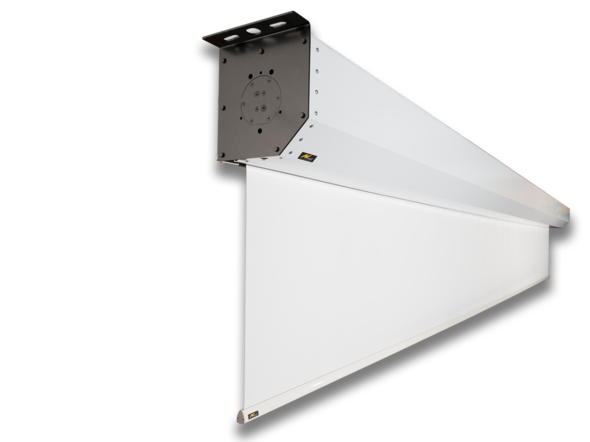

Drive

Drive with quick-change coupling allows the motor to be replaced without dismantling the projection screen. (Magnum 360 and Magnum 300)

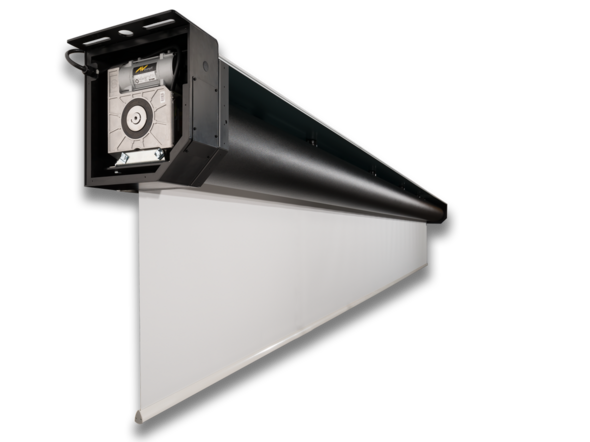

Electric drive

Electric drive certified to theater standard (BGV C1). (Magnum 360)

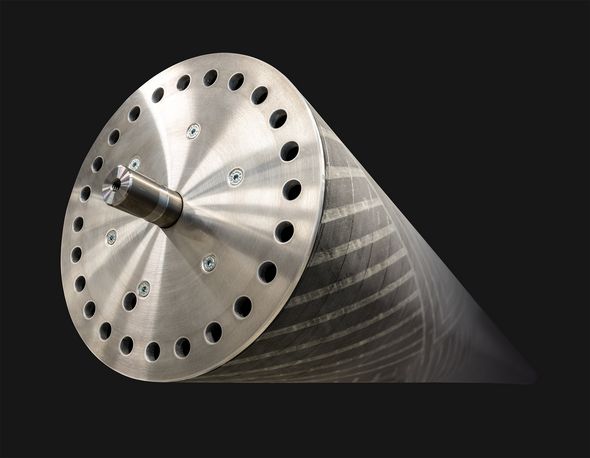

Winding shaft

High-precision winding shaft made of the high-tech carbon material for improved flatness (optional). (Magnum 360)

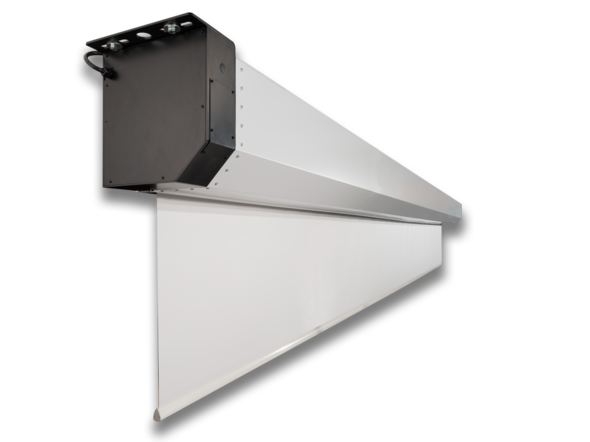

Casing

Closed protective casing.


Available sizes

Magnum

Overall size cm

Diagonal (inch)

Casing dimension

kg net

kg gross

Motor drive Art.-Nr.



Square-format 1:1



500x500cm

278“

SK 21x21cm

100

181

BMM-SQ500



600x600cm

334“

SK 30x30cm

201

373

BMM-SQ600




Video-format 4:3



525x394cm

258“

SK 21x21cm

99

184

BMM-SV525



550x413cm

271“

SK 21x21cm

104

193

BMM-SV550



575x430cm

283“

SK 21x21cm

108

201

BMM-SV575



600x450cm

295“

SK 21x21cm

129

225

BMM-SV600



650x490cm

320“

SK 30x30cm

211

407

BMM-SV650



700x525cm

344“

SK 30x30cm

233

444

BMM-SV700



750x565cm

370“

SK 30x30cm

254

465

BMM-SV750



800x600cm

394“

SK 36x36cm

302

592

BMM-SV800




HDTV-format 16:9



525x295cm

237“

SK 21x21cm

95

180

BMM-SC525



550x310cm

249“

SK 21x21cm

99

188

BMM-SC550



575x323cm

260“

SK 21x21cm

103

196

BMM-SC575



650x365cm

294“

SK 30x30cm

190

375

BMM-SC650



700x395cm

316“

SK 30x30cm

201

396

BMM-SC700



750x425cm

339“

SK 30x30cm

239

450

BMM-SC750



800x450cm

361“

SK 30x30cm

258

464

BMM-SC800




Slide-format 3:2



600x400cm

284“

SK 21x21cm

111

207

BMM-SD600




Panorama-format 2:1



800x400cm

352“

SK 30x30cm

253

477

BMM-SZ800




Free scale



600x330cm

270“

SK 21x21cm

107

203

BMM-SF600



700x400cm

317“

SK 30x30cm

202

397

BMM-SF700



800x500cm

371“

SK 30x30cm

264

488

BMM-SF800



820x375cm

355“

SK 36x36cm

254

299

BMM-SF820



850x400cm

370“

SK 36x36cm

276

307

BMM-SF850



900x400cm

388“

SK 36x36cm

294

323

BMM-SF900



Special sizes on demand.
