Decoframe

Customized and stylish frame projection screen

DECOFRAMES are top-quality and highly attractive frame projection screens that are available for every image format, for both professional and private uses. DECOFRAME lends an elegant and professional appearance to your home cinema, conference room or any other permanent installation leaving nothing to be desired. The DECOFRAME by AV Stumpfl can be tailored to the size of your choice and be supplied with our well-established front and rear projection material. The frame is delivered as a folded frame and the surface material rolled up, which guarantees a crease-free projection surface.

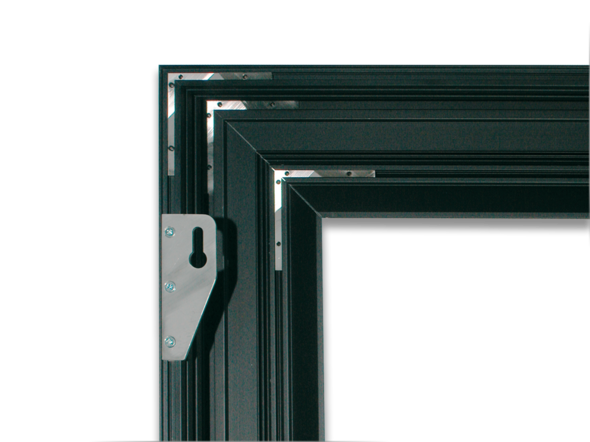

Connecting angle

The connecting angles are attached by screws and guarantee a highly accurate corner joint.

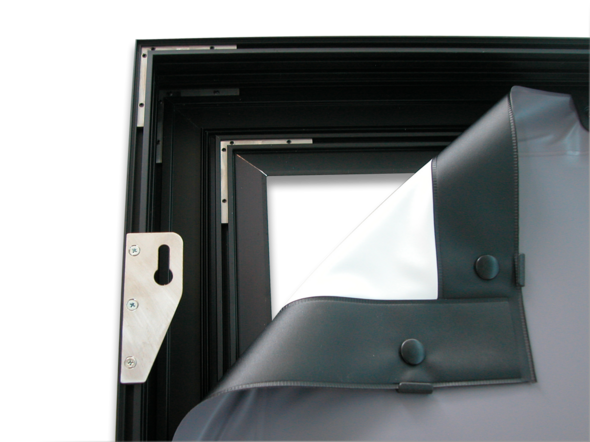

Assembly projection surface

During assembly the screen material is attached to the frame.

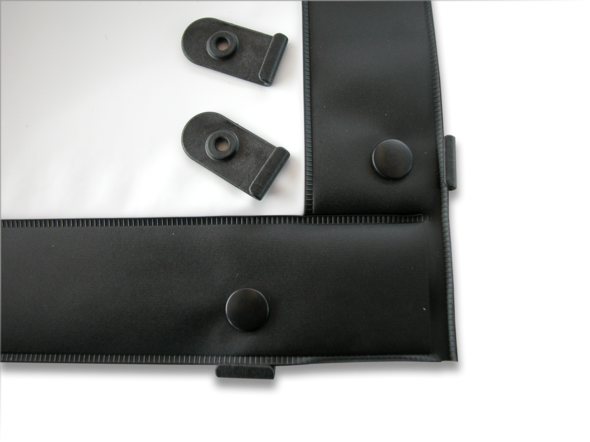

Mounting

 The screen material is attached with plastic hooks.

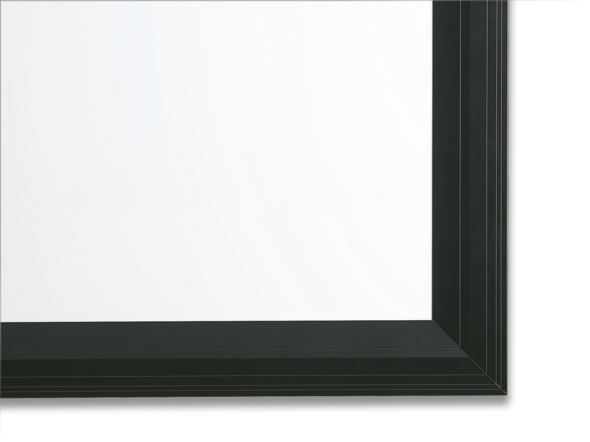

Black anodized aluminium frame

Sharp corners ensure accurate borders around the area of the projected image.

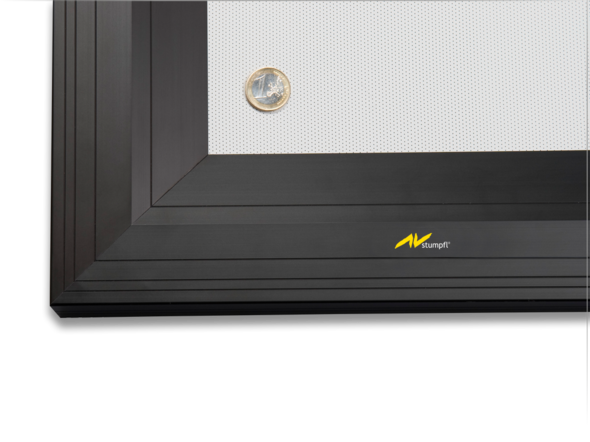

Sound-permeable

The projection material for the perfect home movie sound is micro-perforated and thus permeable to sound.

Perfect rectangular shape and accurate edges

Precise edges prevent shadows.

Downloads

Verfügbare Standardgrößen

Andere Größen auf Anfrage

Decoframe

Overall size cm

Picture size cm

Diagonal (inch)

Article number

kg



Format 4:3



176 x 136

160 x 120

78“

BDS-AV160

15



196 x 151

180 x 135

88“

BDS-AV180

17



216 x 166

200 x 150

98“

BDS-AV200

19



256 x 196

240 x 180

118“

BDS-AV240

22



296 x 226

280 x 210

138“

BDS-AV280

26



336 x 256

320 x 240

157“

BDS-AV320

29



416 x 316

400 x 300

197“

BDS-AV400

39



516 x 391

500 x 375

246“

BDS-AV500

50




Außenmaß cm

Bildmaß cm

Diagonale (inch)

Artikelnr.

kg



Format 16:9



176 x 106

160 x 90

72“

BDS-AC160

14



196 x 118

180 x 102

81“

BDS-AC180

15



216 x 129

200 x 113

90“

BDS-AC200

17



256 x 151

240 x 135

108“

BDS-AC240

20



296 x 174

280 x 158

127“

BDS-AC280

23



336 x 196

320 x 180

145“

BDS-AC320

26



416 x 241

400 x 225

181“

BDS-AC400

34



516 x 297

500 x 281

226“

BDS-AC500

43




Außenmaß cm

Bildmaß cm

Diagonale (inch)

Artikelnr.

kg



Format 16:10



176 x 116

160 x 100

74“

BDS-AW160

14



196 x 129

180 x 113

83“

BDS-AW180

16



216 x 141

200 x 125

92“

BDS-AW200

17



256 x 166

240 x 150

111“

BDS-AW240

20



296 x 191

280 x 175

130“

BDS-AW280

24



336 x 216

320 x 200

148“

BDS-AW320

27



416 x 266

400 x 250

185“

BDS-AW400

36



516 x 329

500 x 313

232“

BDS-AW500

45




Related products

Fullwhite

Purely the picture.

More information >

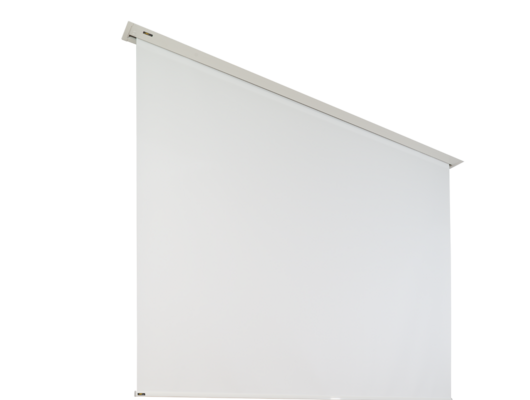

Roll up
